Product · OUTDOOR · URBAN · PARK & CITY

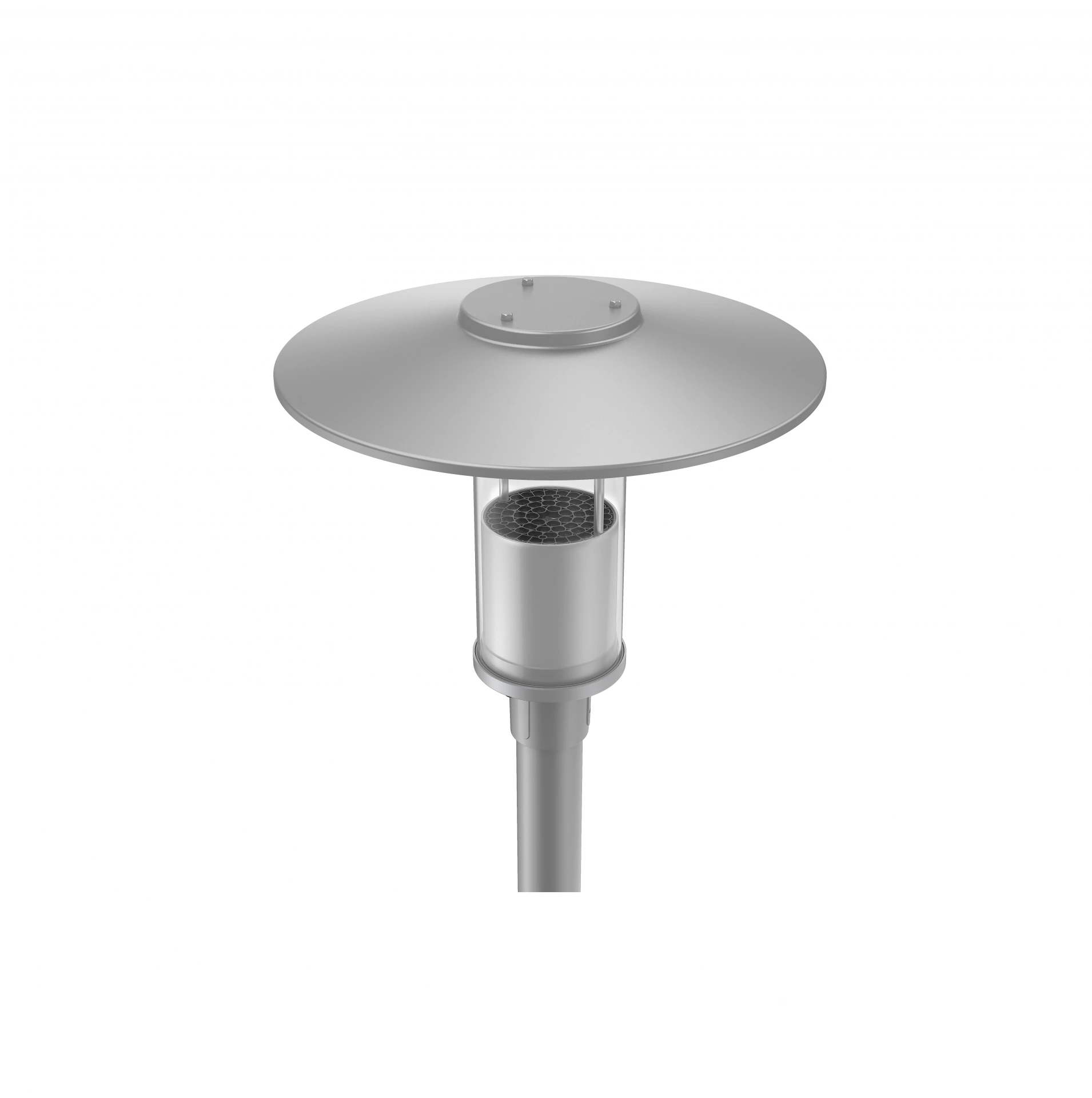

FLATORA

FLATORA is a modern LED luminaire designed to create safe, comfortable and aesthetically refined urban environments. It is ideally suited for city squares, a wide range of public spaces, recreational gardens and pedestrian walkways, where uniform illumination, durability and seamless architectural integration are essential.

Luminous efficacy 140 lm/W
Correlated color temperature (CCT) 2200K–6500K
Luminaire rated power 15–80W, programmable in 1W increments (NFC)
Luminous flux 2,100 – 11,200 lm
Warranty up to 5 years
CEIP66IP67IK09RG0Dark Sky (0% uplight)

Technical parameters

Luminous efficacy 140 lm/W
Correlated color temperature (CCT) 2200K–6500K
Luminaire rated power 15–80W, programmable in 1W increments (NFC)
Luminous flux 2,100 – 11,200 lm
Warranty up to 5 years
CEIP66IP67IK09RG0Dark Sky (0% uplight)

Downloads

Characteristics

FLATORA is a modern LED luminaire developed to shape safe, comfortable and visually appealing urban spaces. It performs exceptionally well in city squares, public areas, recreational gardens and pedestrian pathways, where uniform illumination, mechanical durability and harmonious integration with the surroundings are key requirements.

By incorporating energy-efficient LED technology, the luminaire delivers high luminous efficacy, stable operating parameters and visually comfortable light that supports evening walks, relaxation and outdoor activity after dark. Its light enhances architectural features and natural surroundings while significantly increasing user safety.

The minimalist form of the FLATORA luminaire allows it to blend seamlessly with diverse architectural styles — from contemporary urban plazas to traditional squares and green recreational areas. The robust, weather-resistant construction ensures long-term, maintenance-free performance in demanding outdoor environments.

FLATORA combines aesthetics, functionality and energy efficiency, making it suitable for both representative public areas and everyday urban spaces. Its photometric characteristics enable the creation of welcoming environments that encourage outdoor activity at any time of day.

Applications

Urban parks and gardens, promenades, public squares and recreational areas; pedestrian and cycle paths as well as residential zones; urban and suburban streets (single- and double-sided layouts, including central mounting); parking areas, bus bays, maneuvering yards and open spaces; tunnels, underpasses and infrastructure facilities; industrial sites and roadways with single-sided development (optical systems limiting light spill beyond the target area).

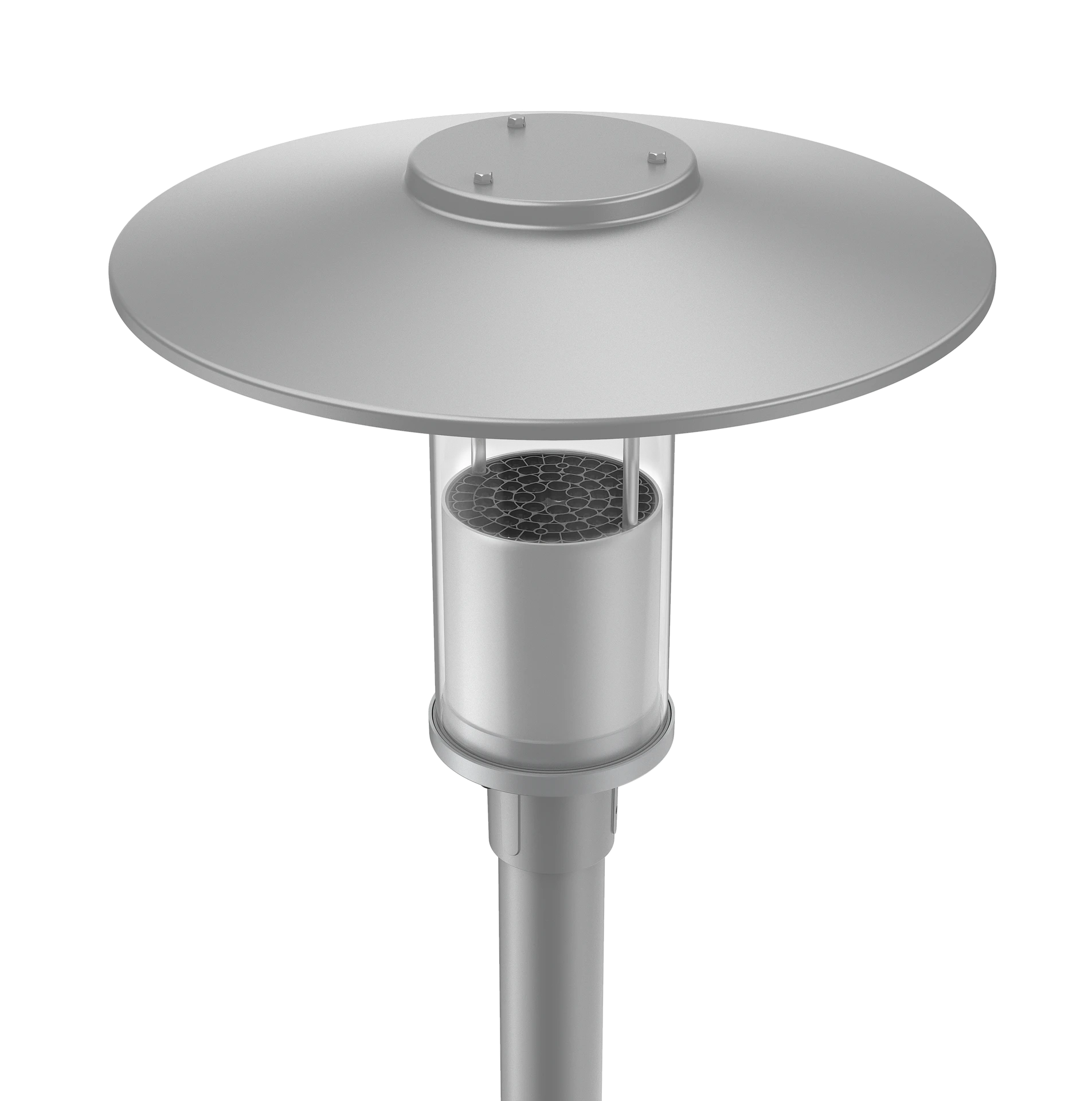

FLATORA 1

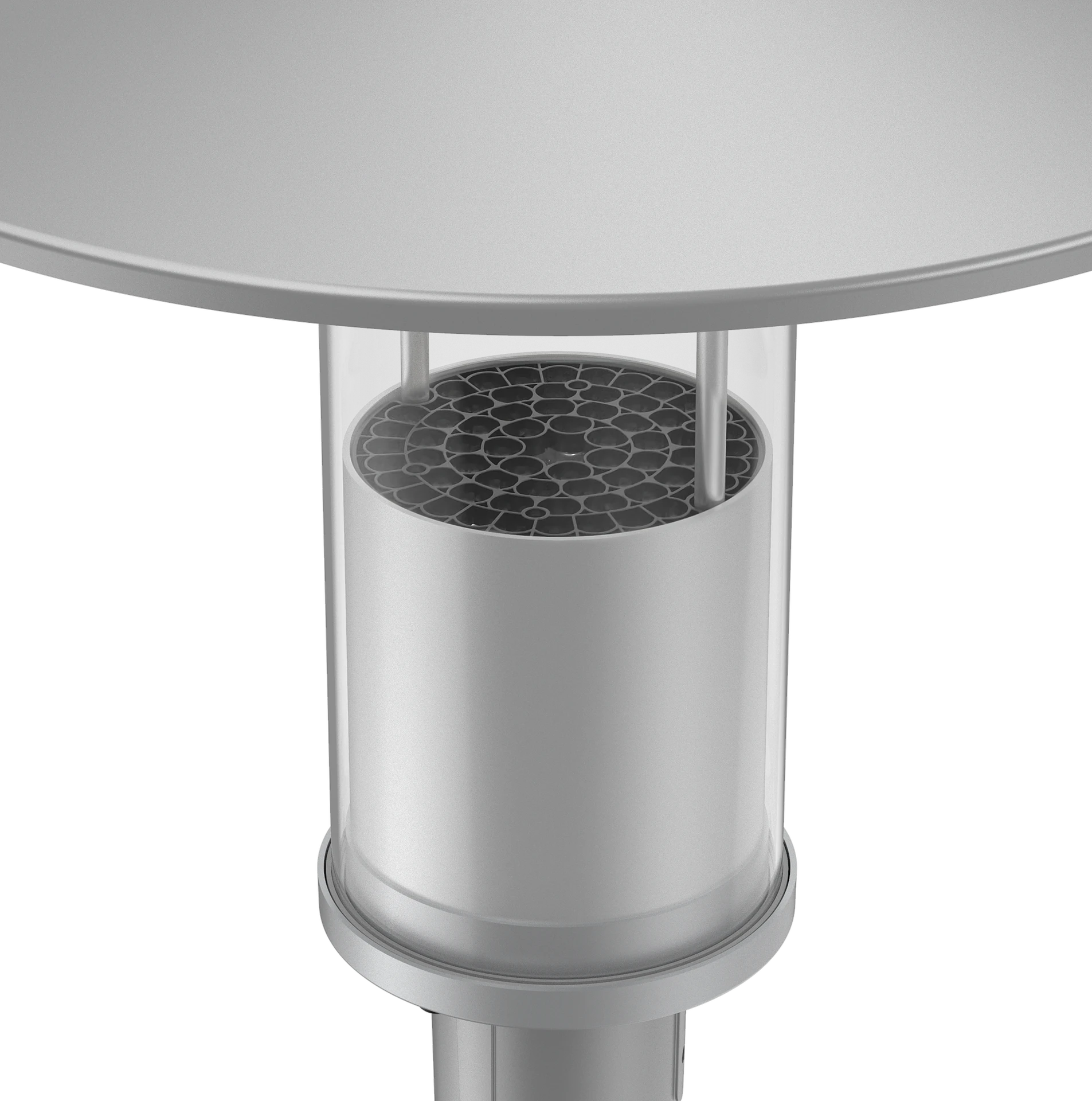

FLATORA 2

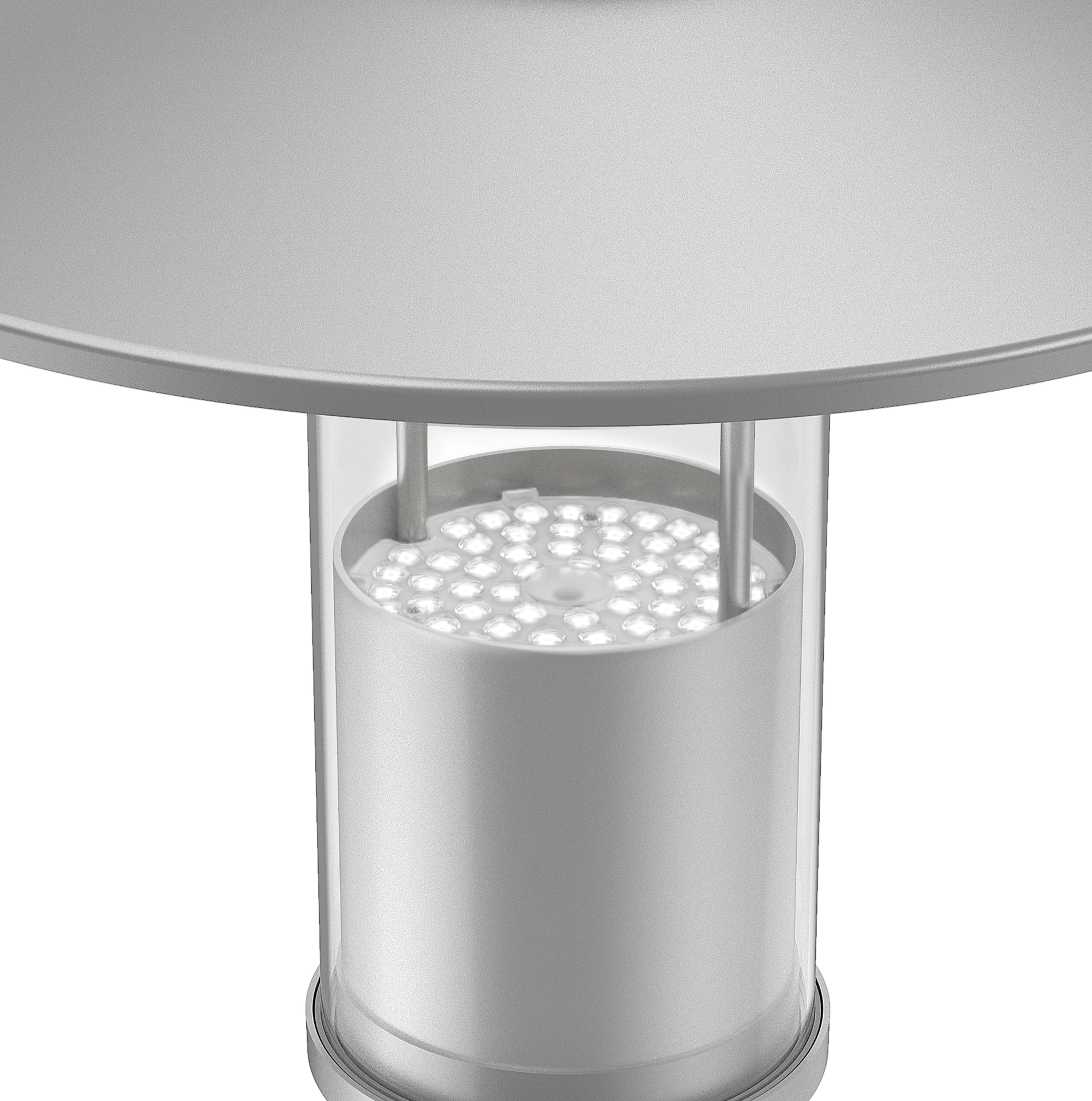

FLATORA 3

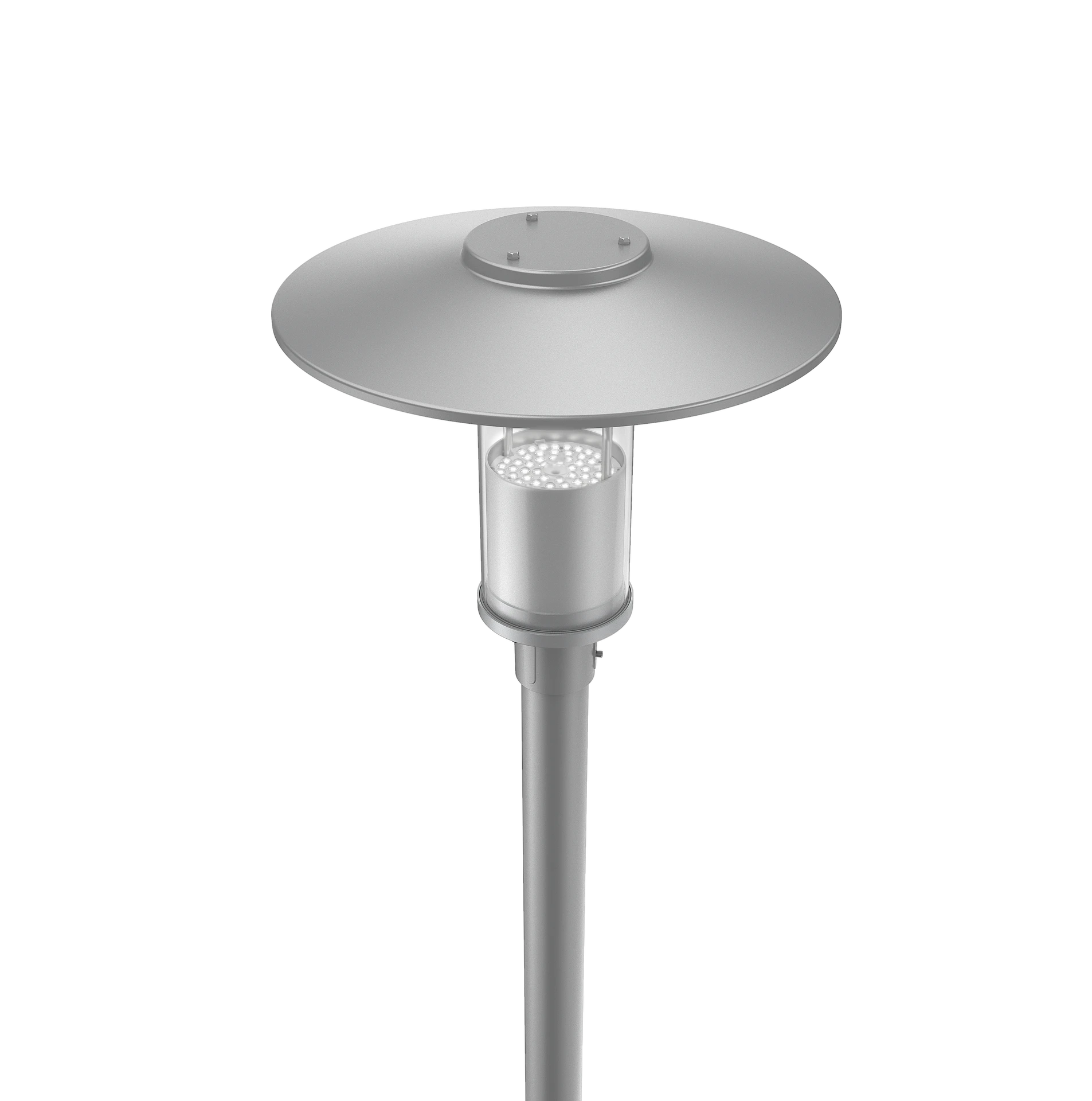

FLATORA 4

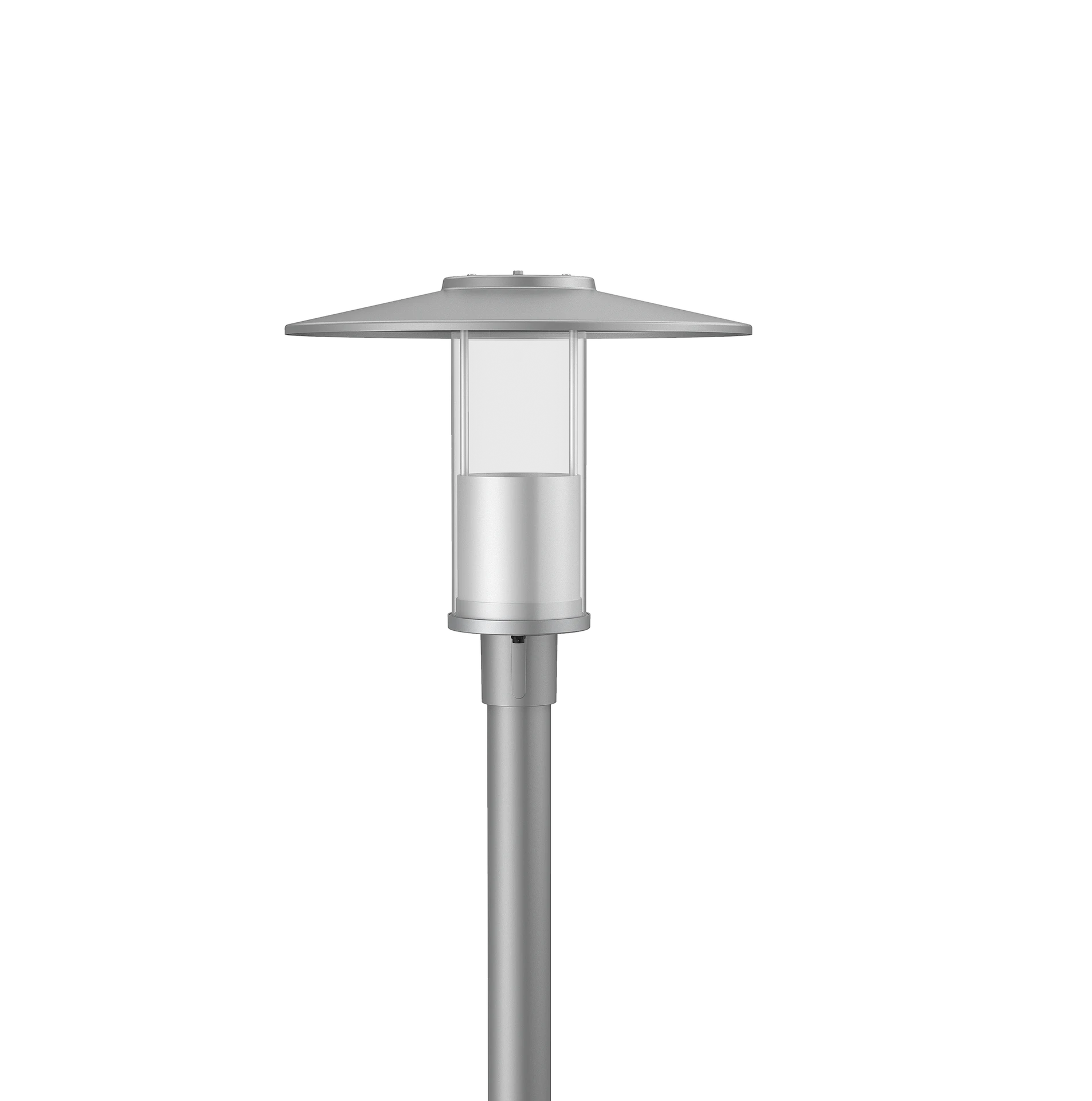

FLATORA 5

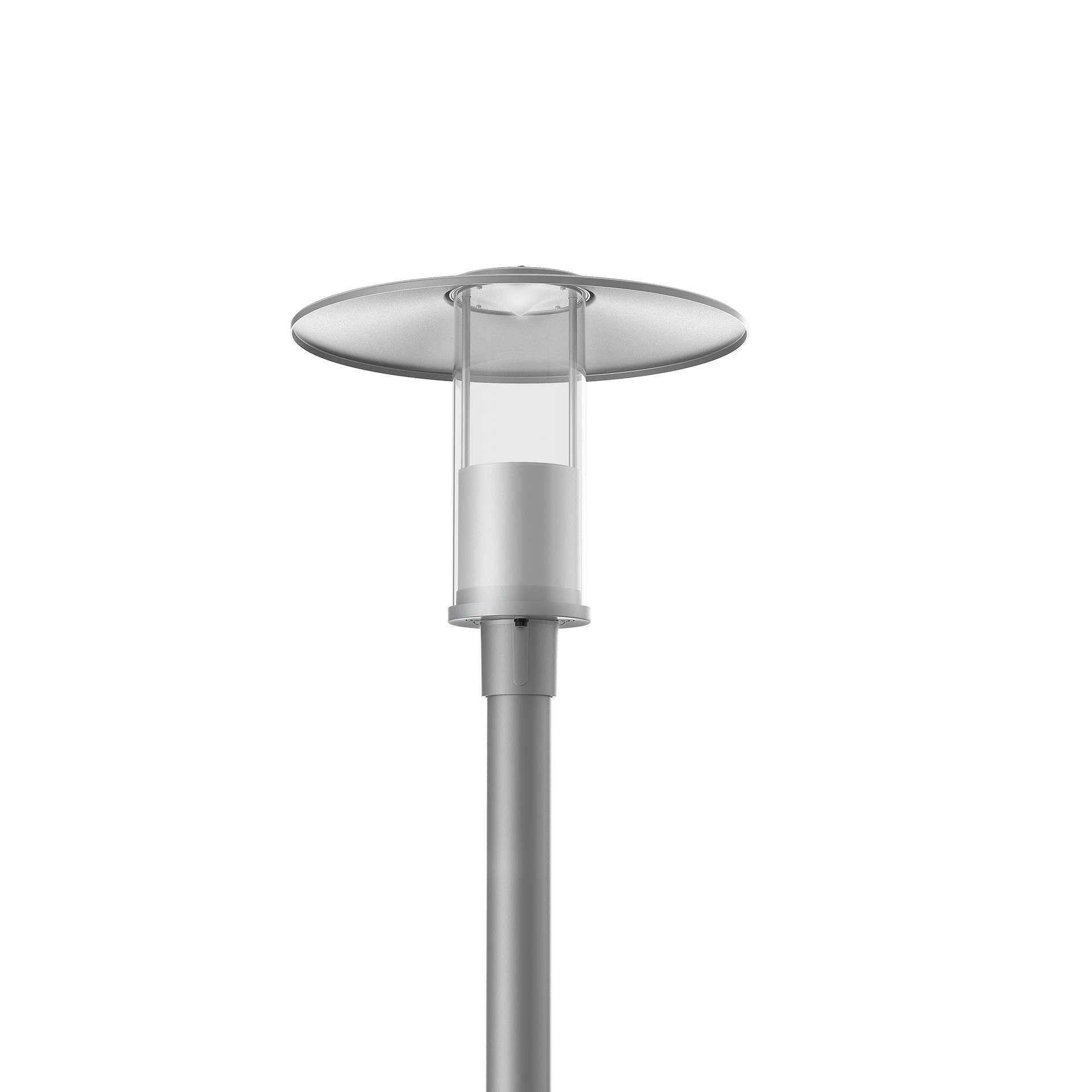

FLATORA 6

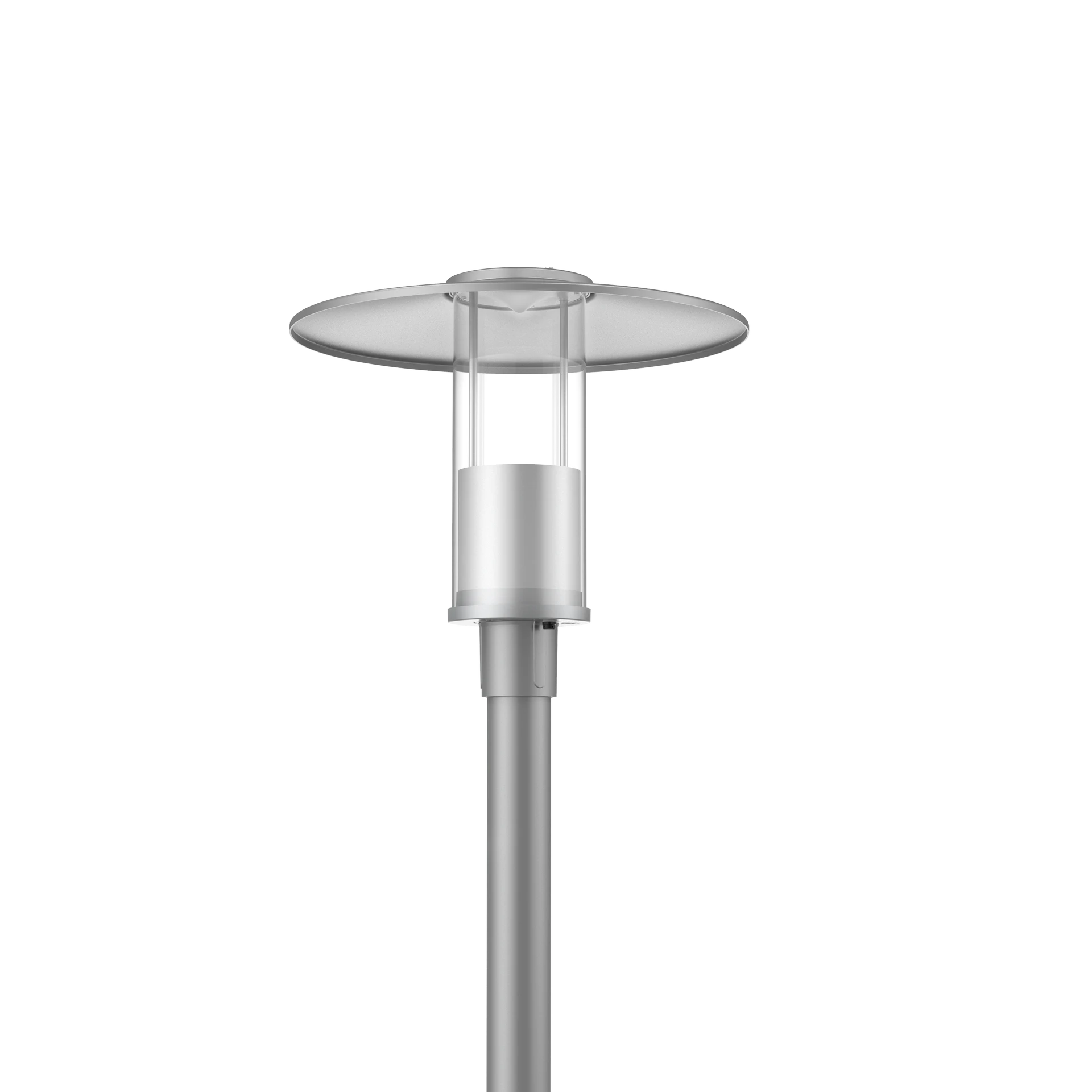

FLATORA 7

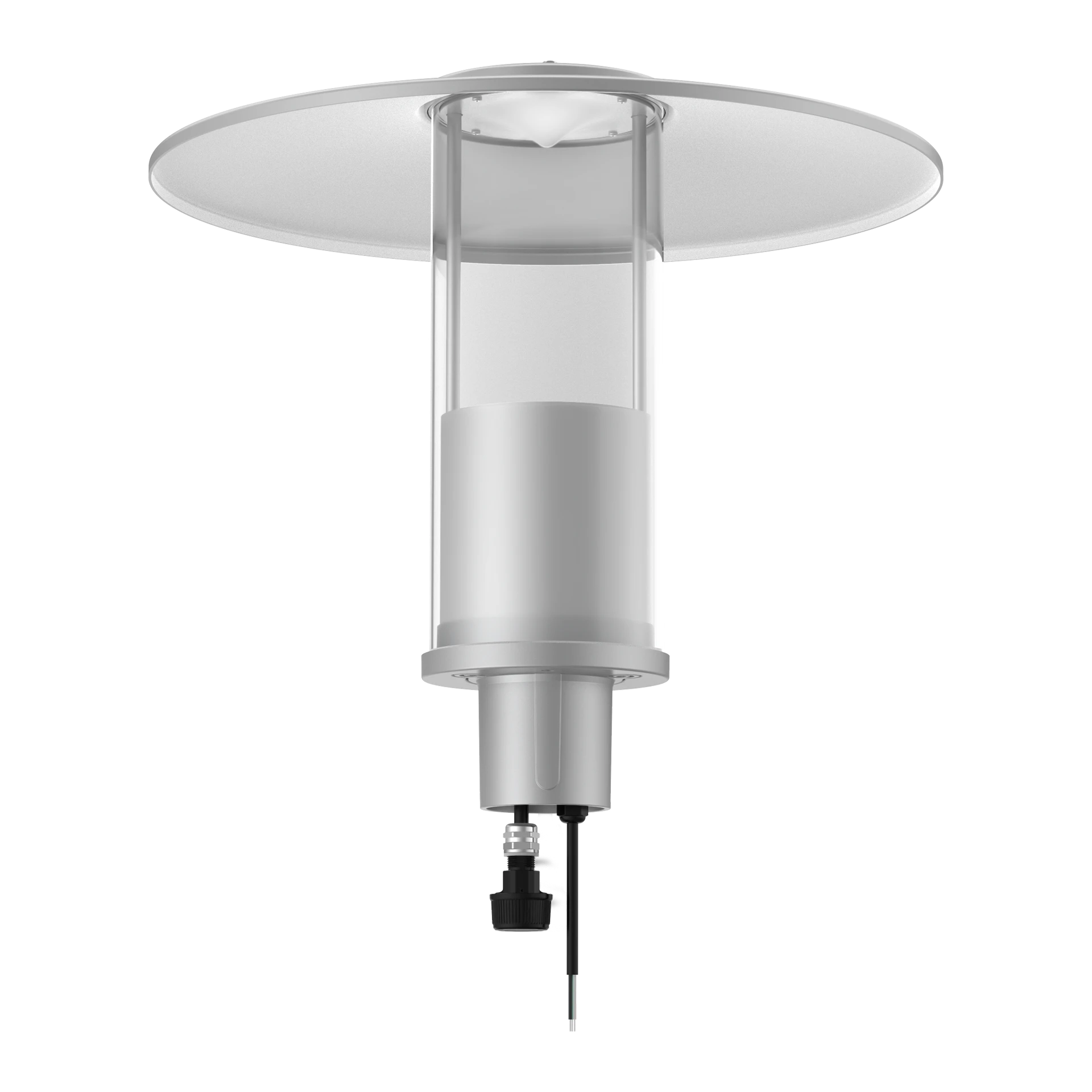

FLATORA 8

Accessories

TBD-ZHAGA18 Zhaga Book 18 socket (top/bottom) – configuration prior to prefabrication
TBD-NEMA7 NEMA ANSI C136.41 (7-pin) socket – configuration prior to prefabrication
TBD-LC-GSM Linter Control GSM/LTE/NB-IoT controller for remote monitoring and configuration
TBD-LC-LORA Linter Control LoRaWAN controller for operation within a distributed network
TBD-SENSOR-PIR PIR motion sensor (Zhaga/NEMA)
TBD-SENSOR-LUX Dusk / ambient light sensor (Zhaga/NEMA)
TBD-SPD-EXT Additional surge protection device
TBD-LOCK-TOOL Tool-lock version / anti-tamper protection
TBD-SEAL-PLUMB Provision for warranty / inspection sealing
POWER+ Power supply system compatible with LightSafe™ system
