Product · OUTDOOR · URBAN · PARK & CITY

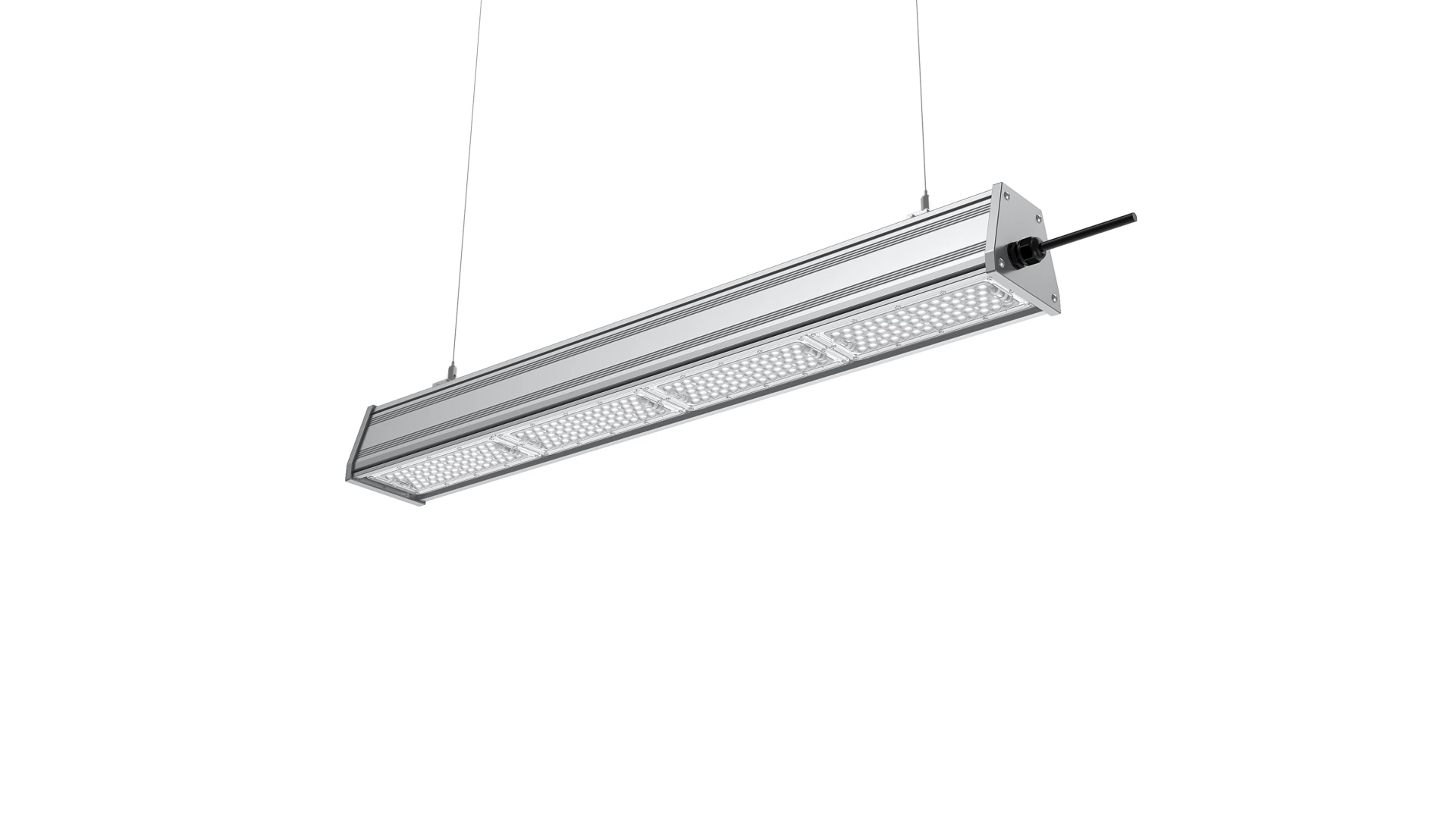

ARI

ARI is a modern LED luminaire designed for industrial and technical environments such as production halls, warehouses, logistics centers, and commercial facilities. It delivers powerful, uniform, and comfortable lighting that enhances workplace safety, task precision, and everyday user comfort.

Luminous efficacy 170 lm/W
Correlated color temperature 2200K–6500K
Luminaire rated power 100–200 W, programmable in 1 W increments (NFC)
Luminous flux 7 000–40 000 lm
Warranty up to 5 years
CEIP66IP67IK09IK10RG0

Technical parameters

Luminous efficacy 170 lm/W
Correlated color temperature 2200K–6500K
Luminaire rated power 100–200 W, programmable in 1 W increments (NFC)
Luminous flux 7 000–40 000 lm
Warranty up to 5 years
CEIP66IP67IK09IK10RG0

Downloads

Characteristics

Thanks to high-performance MST, TCI, and BMTC LED modules, ARI delivers an impressive luminous efficacy of 170 lm/W and a luminous flux ranging from 7,000 to 40,000 lm. Stable operation, long service life ≥100,000 h (L95B10), and high light quality with CRI >70/80 make the luminaire ideal for environments with heavy human and machine traffic, ensuring good visibility and minimized glare (UGR <19).

The robust housing made of aluminum coated with PVDF and a protection rating of IP69K ensure resistance to dust, moisture, high temperatures, UV radiation, and salt mist. ARI operates reliably in temperatures from –40 °C to +60 °C. IK09/IK10 impact resistance and compliance with IEC 60068-2-6 vibration standards confirm its suitability for demanding industrial conditions.

Multi-lens optics with five light distribution types allow precise adaptation to various applications — from task lighting to large warehouse spaces. Zero uplight emission (0%) ensures compliance with Dark Sky requirements, making the luminaire environmentally friendly. Advanced control options including 1–10 V, DALI, DALI-2, autonomous dimming profiles, and support for PIR and microwave sensors as well as IoT systems enable the creation of intelligent and energy-efficient lighting installations.

Applications

ARI is a solution that combines reliability, high energy efficiency, and modern design. It provides a bright, safe, and comfortable environment, meeting the expectations of even the most demanding industrial and logistics facilities.
ARI 1
ARI 2

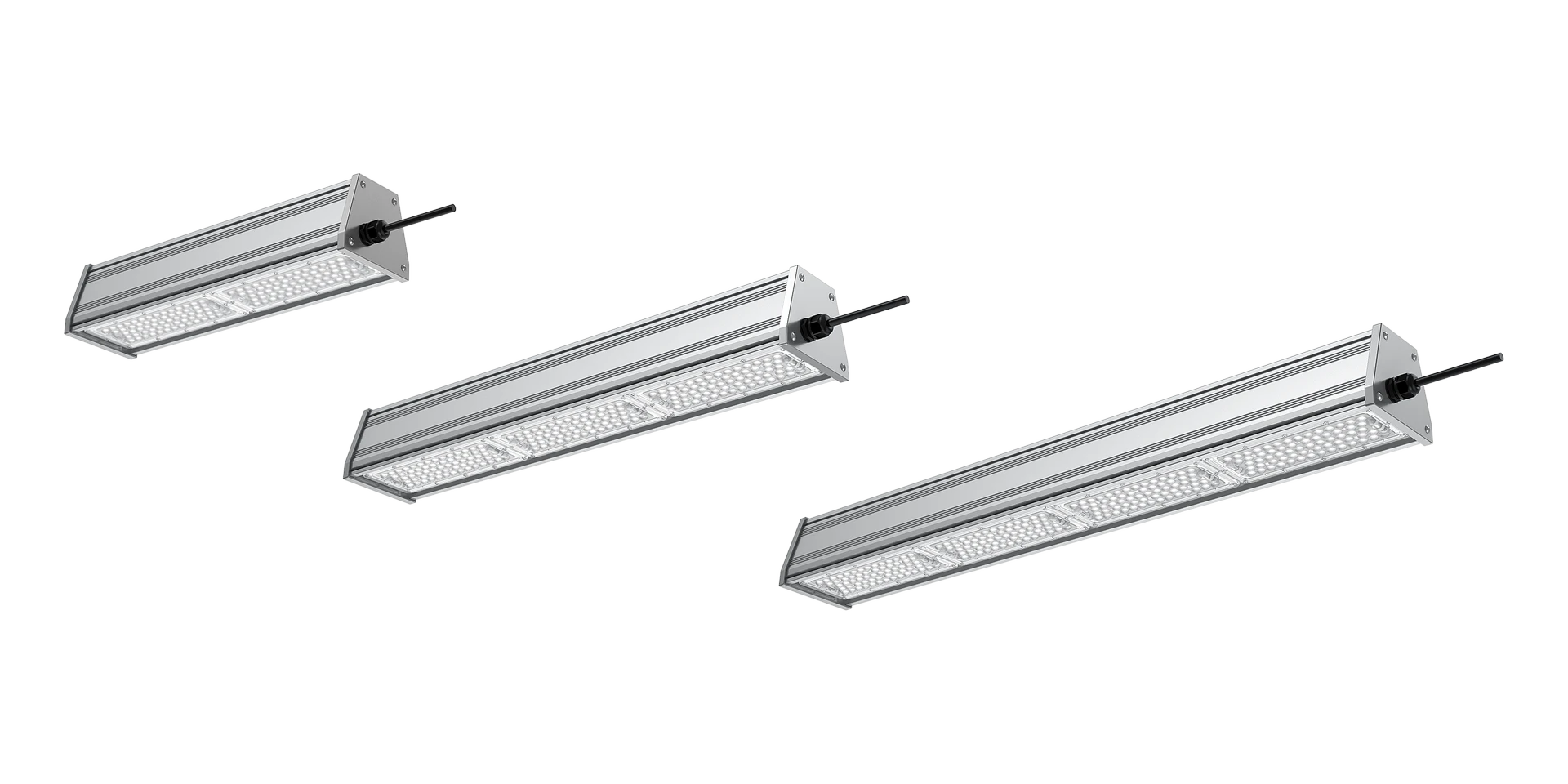

ARI 3

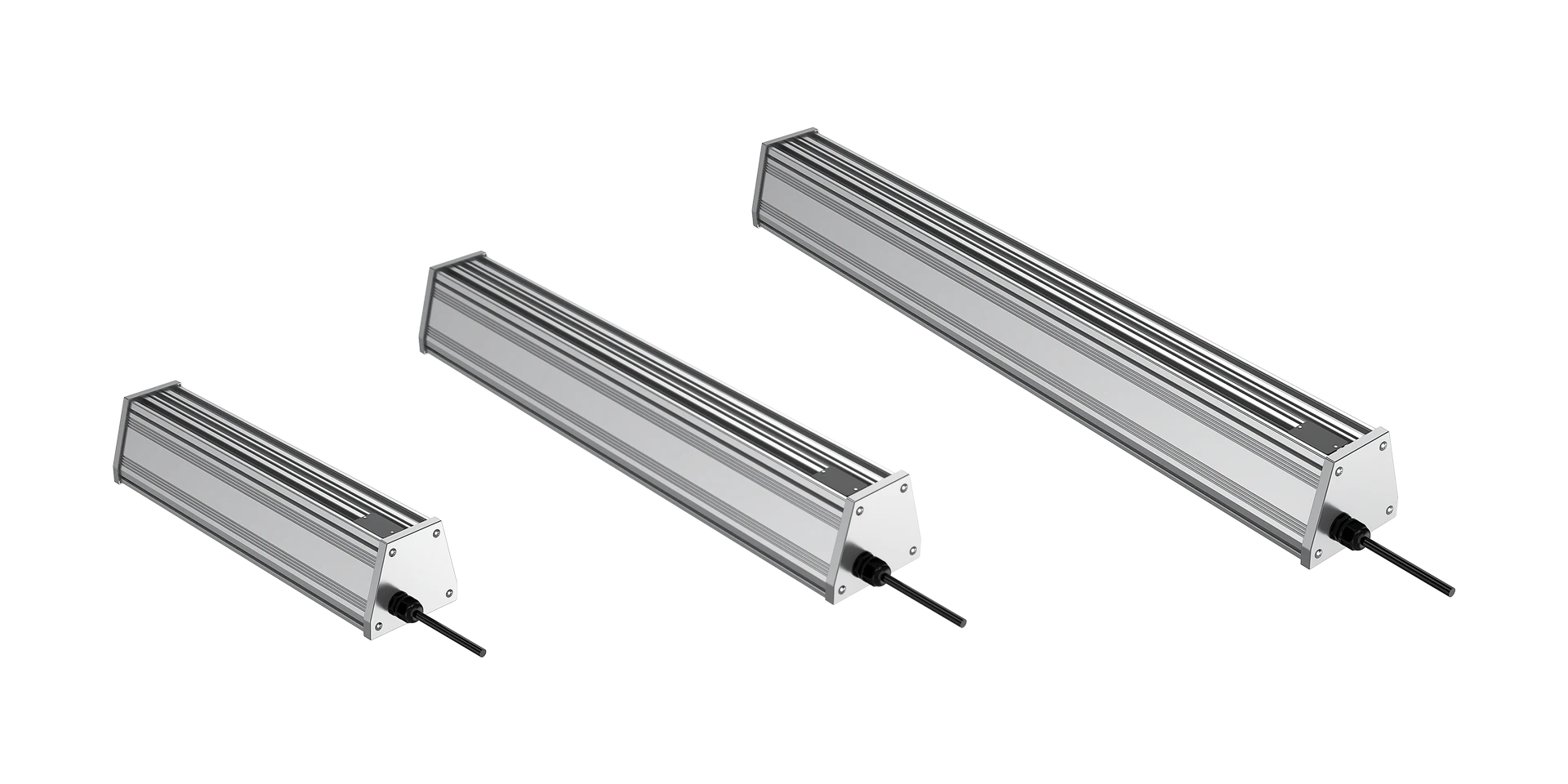

ARI 4

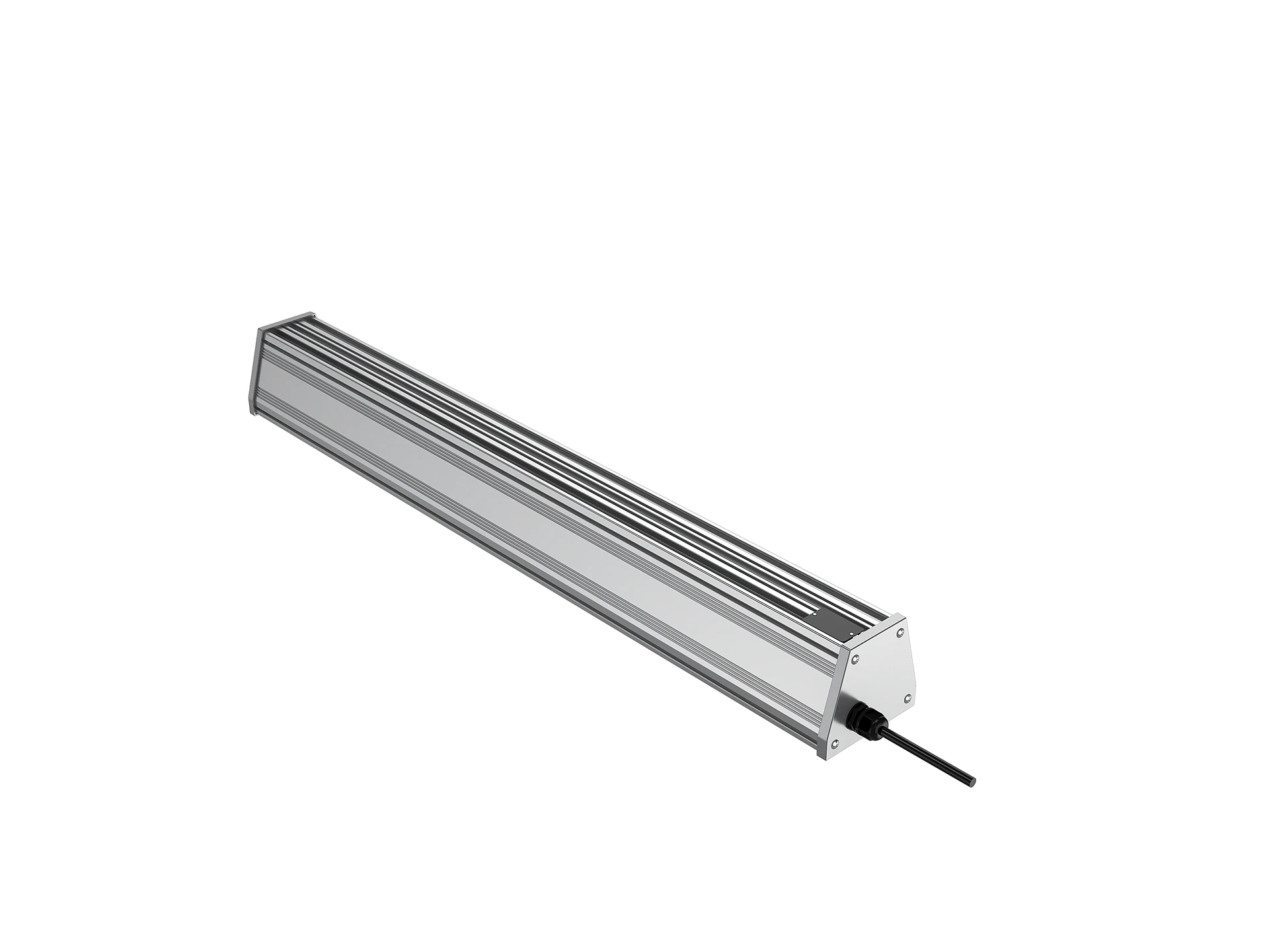

ARI 5

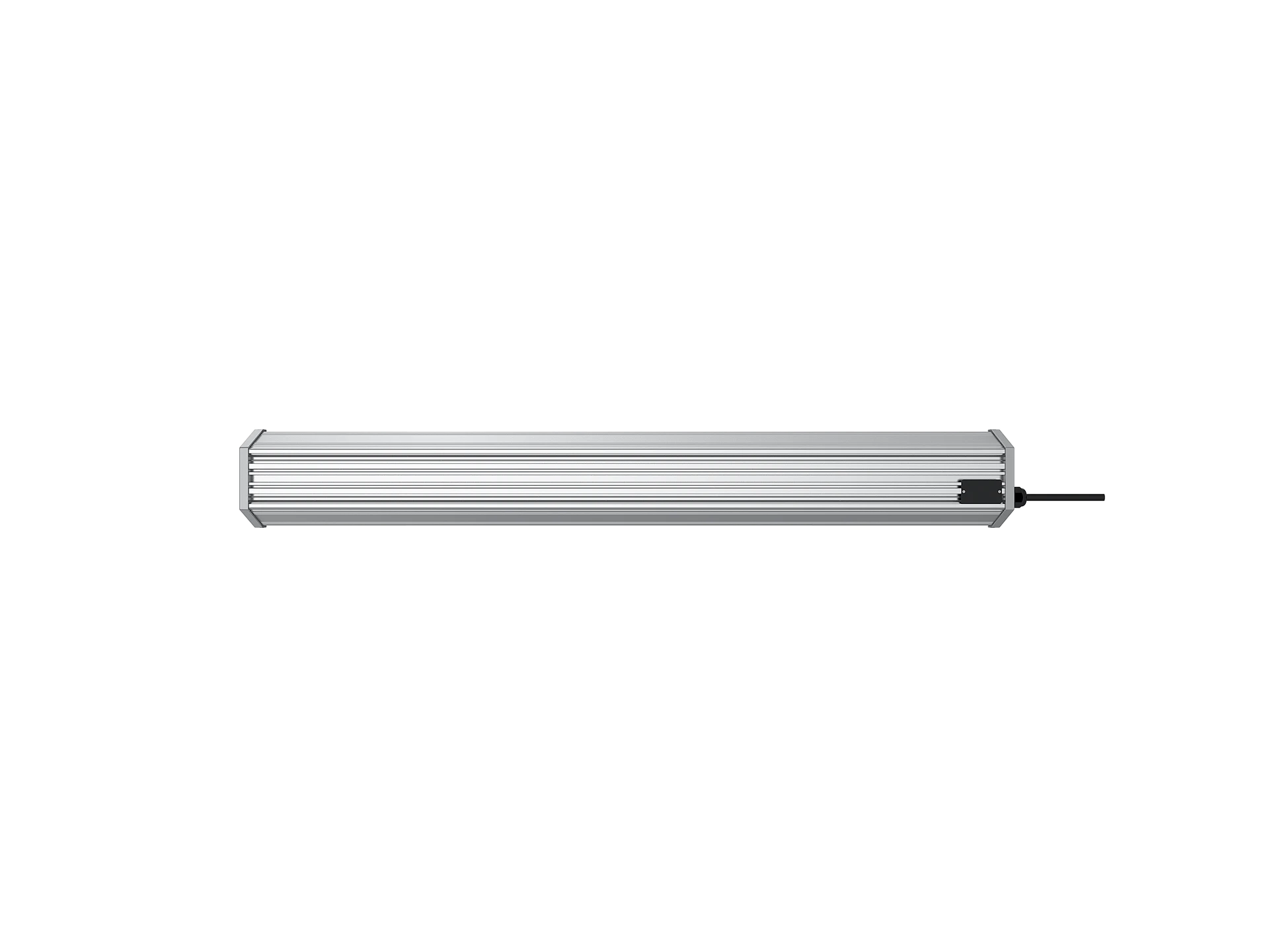

ARI 6

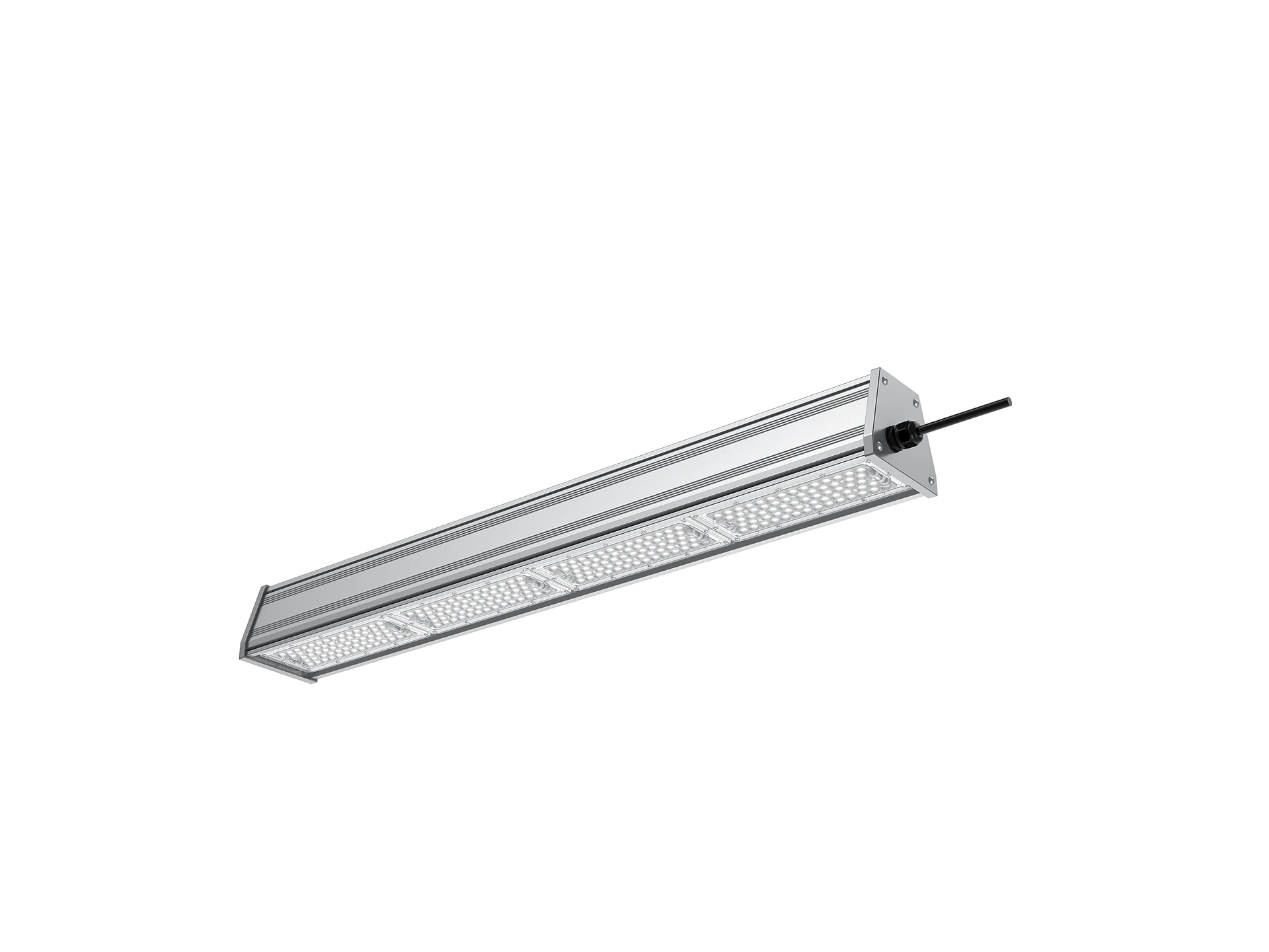

ARI 7

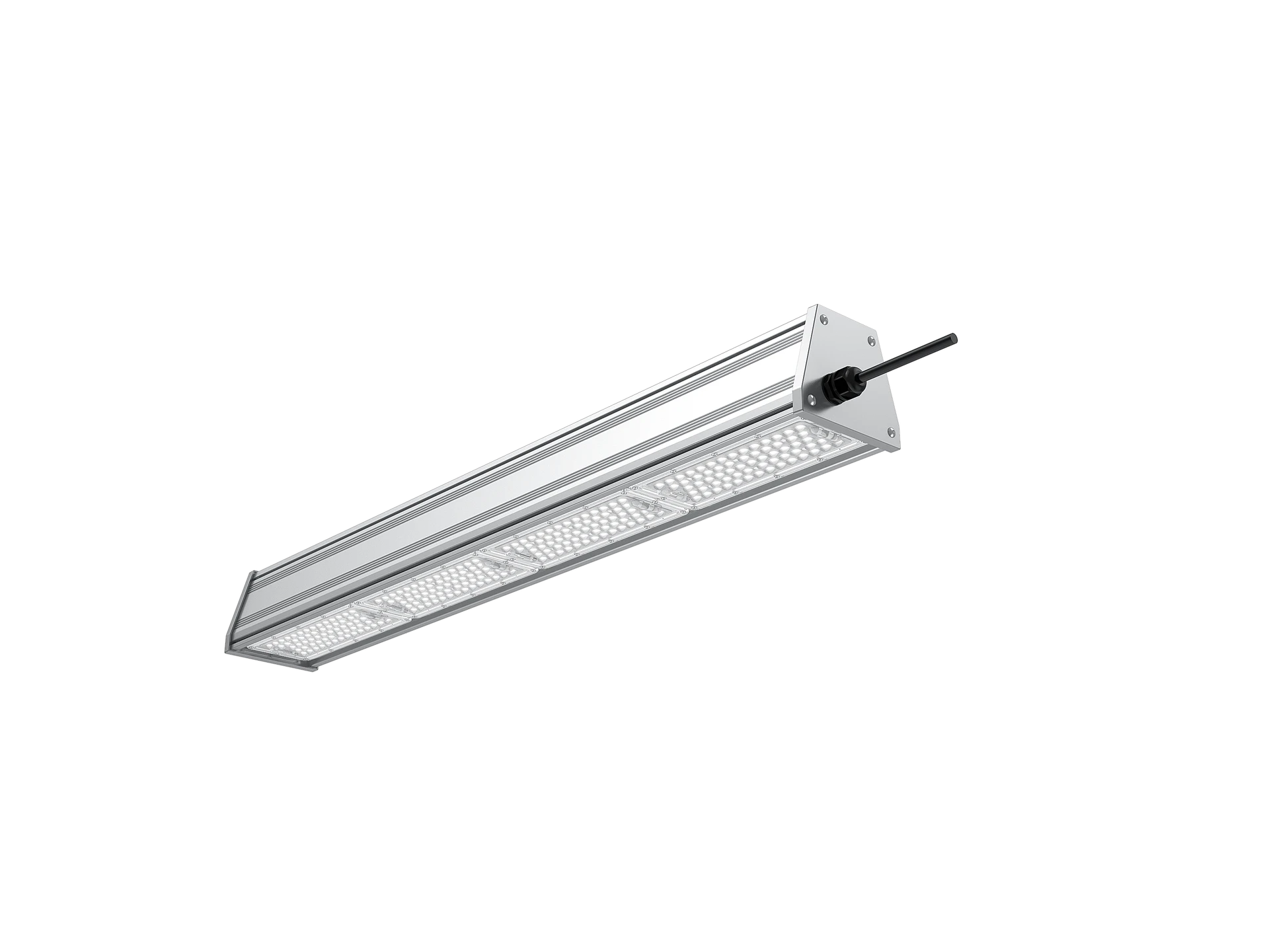

ARI 8

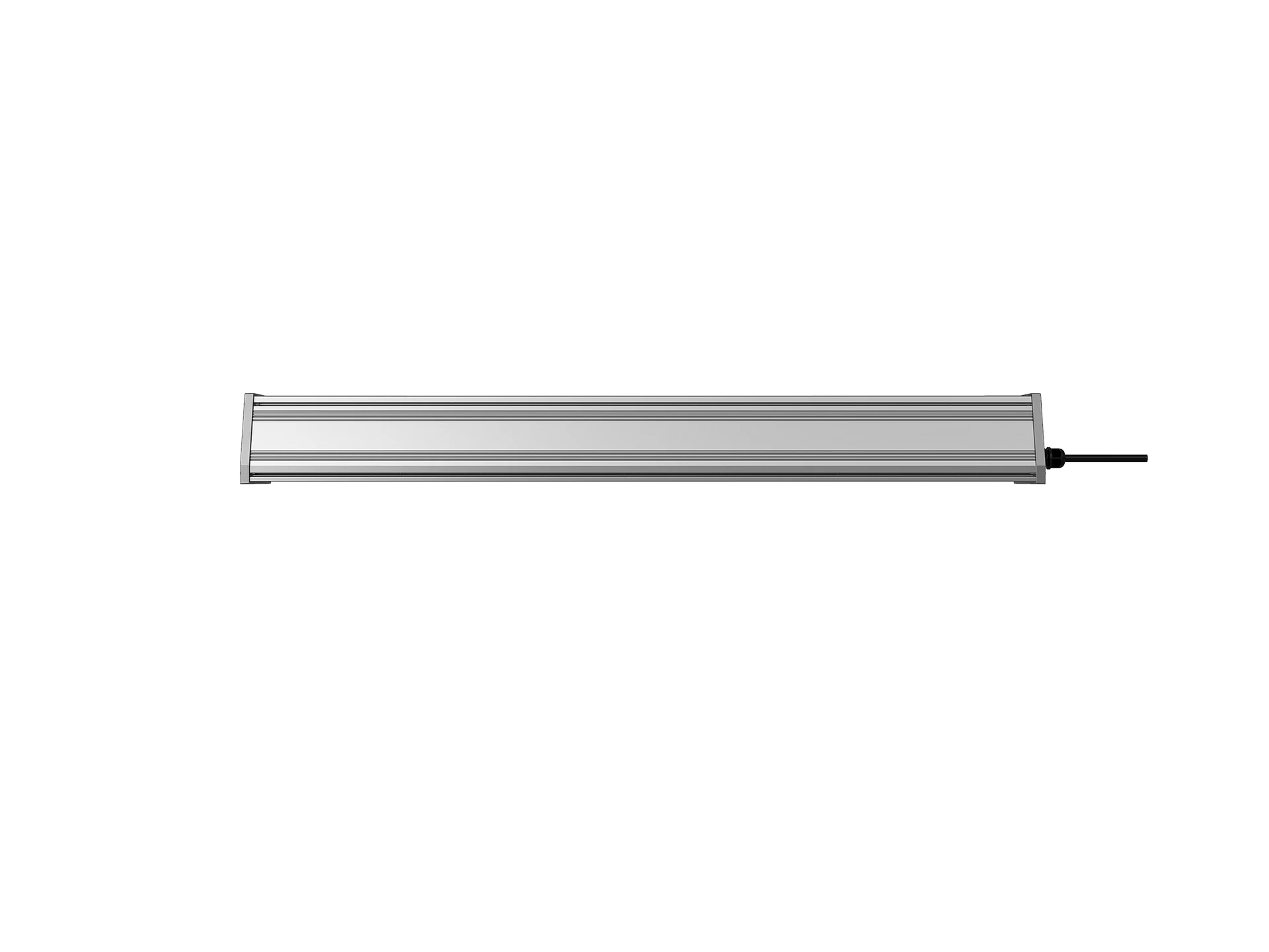

ARI 9

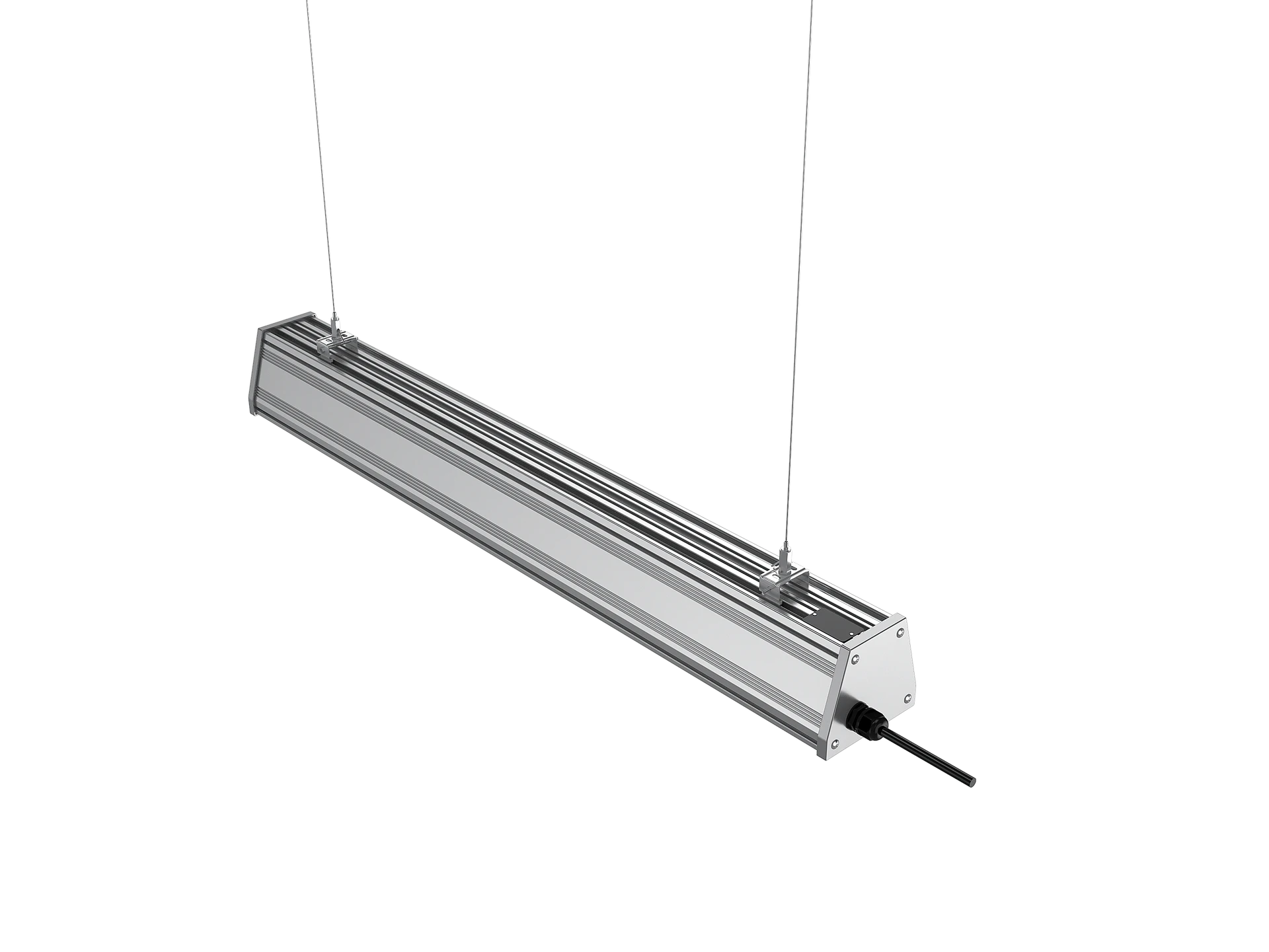

ARI 10

Accessories

TBD-ZHAGA18 Zhaga Book 18 socket (top/bottom) – configuration before prefabrication
TBD-NEMA7 NEMA ANSI C136.41 (7-pin) socket – configuration before prefabrication
TBD-LC-GSM Linter Control GSM/LTE/NB-IoT controller for remote monitoring and configuration
TBD-LC-LORA Linter Control LoRaWAN controller for operation in a distributed network
TBD-SENSOR-PIR PIR motion sensor (Zhaga/NEMA)
TBD-SENSOR-LUX Dusk / illuminance sensor (Zhaga/NEMA)
TBD-SPD-EXT Additional surge protection device
TBD-LOCK-TOOL Tool-operated locking version / protection against unauthorized access
TBD-SEAL-PLUMB Option for warranty / inspection sealing
POWER+ Power supply system compatible with the LightSafe™ system
