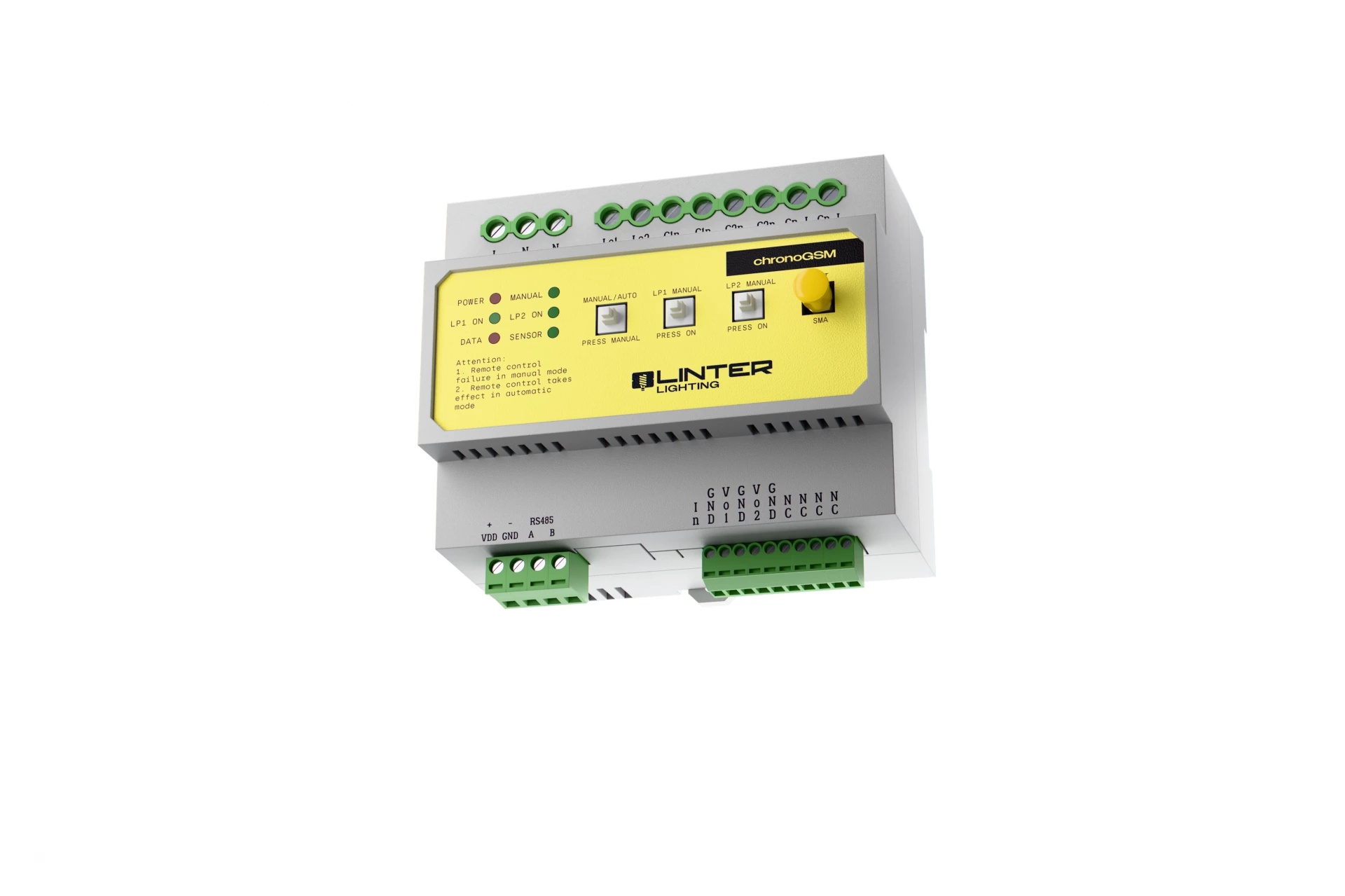

ChronoGSM

ChronoGSM is a device that combines the functions of an astronomical clock, circuit controller, measurement module, and GSM SIM communication module. The clock operates independently or as part of a distributed control system. It supports time-based control, astronomical scheduling, local rules, remote management, and integration with external sensors.

Control NFC, GSM SIM
Operating modes Manual - Automatic
Number of circuits 2
Functions Current measurement, load analysis, scheduling
Warranty up to 5 years
CEIP67TALQ ready

Technical parameters

Control NFC, GSM SIM
Operating modes Manual - Automatic
Number of circuits 2
Functions Current measurement, load analysis, scheduling
Warranty up to 5 years
CEIP67TALQ ready

Downloads

Datasheet CE Declaration

Characteristics

CHRONO GSM is an advanced control clock with GSM communication and SIM card support, combining the functions of an astronomical timer, a controller for two independent circuits, and a measurement and telemetry module.

The clock enables the creation of exceptions and flexible operating schedules (sunrise/sunset, offsets, night breaks, seasonal modes), as well as advanced IF/AND/OR logical rules based on network parameters and sensor signals. The device continuously analyzes grid performance – measuring voltage, current, power, energy, leakage current, and circuit status, generating alarms and event history in real time.

Remote management is available via web browser or mobile application, allowing circuit switching, schedule modification, parameter monitoring, and OTA firmware updates. With support for LTE, LoRaWAN, ZigBee, and Bluetooth, as well as offline operation, protection features, and galvanic isolation, CHRONO GSM provides a reliable solution for professional lighting systems and Smart City infrastructure.

Applications

CHRONO GSM is used in professional street, road, park, residential, and industrial lighting systems where precise control of two independent circuits and full network parameter analysis are required. The device performs effectively in parking areas, shopping centers, recreational zones, logistics facilities, as well as in yard lighting and loading ramp illumination, enabling astronomical schedules, exceptions (holidays, events, seasonal changes), night breaks, and dynamic operating scenarios.

Thanks to built-in telemetry – voltage, current, power, energy, leakage current measurement, and circuit status analysis – the system allows continuous infrastructure monitoring and rapid detection of failures, overloads, or load drops. Remote management via web browser or application, with the ability to switch circuits, modify schedules, generate reports, and perform OTA updates, makes the device an effective tool for municipalities, housing communities, public facility managers, and Smart City infrastructure.

Integration with motion and dusk sensors as well as automation systems (AI 0–10 V, DI, CT, PWM), support for LTE, LoRaWAN, ZigBee, and Bluetooth communication, and offline capability ensure deployment flexibility in both small local installations and distributed urban systems. CHRONO GSM is a comprehensive solution for managing public and industrial lighting, combining energy optimization, operational safety, and full infrastructure control.

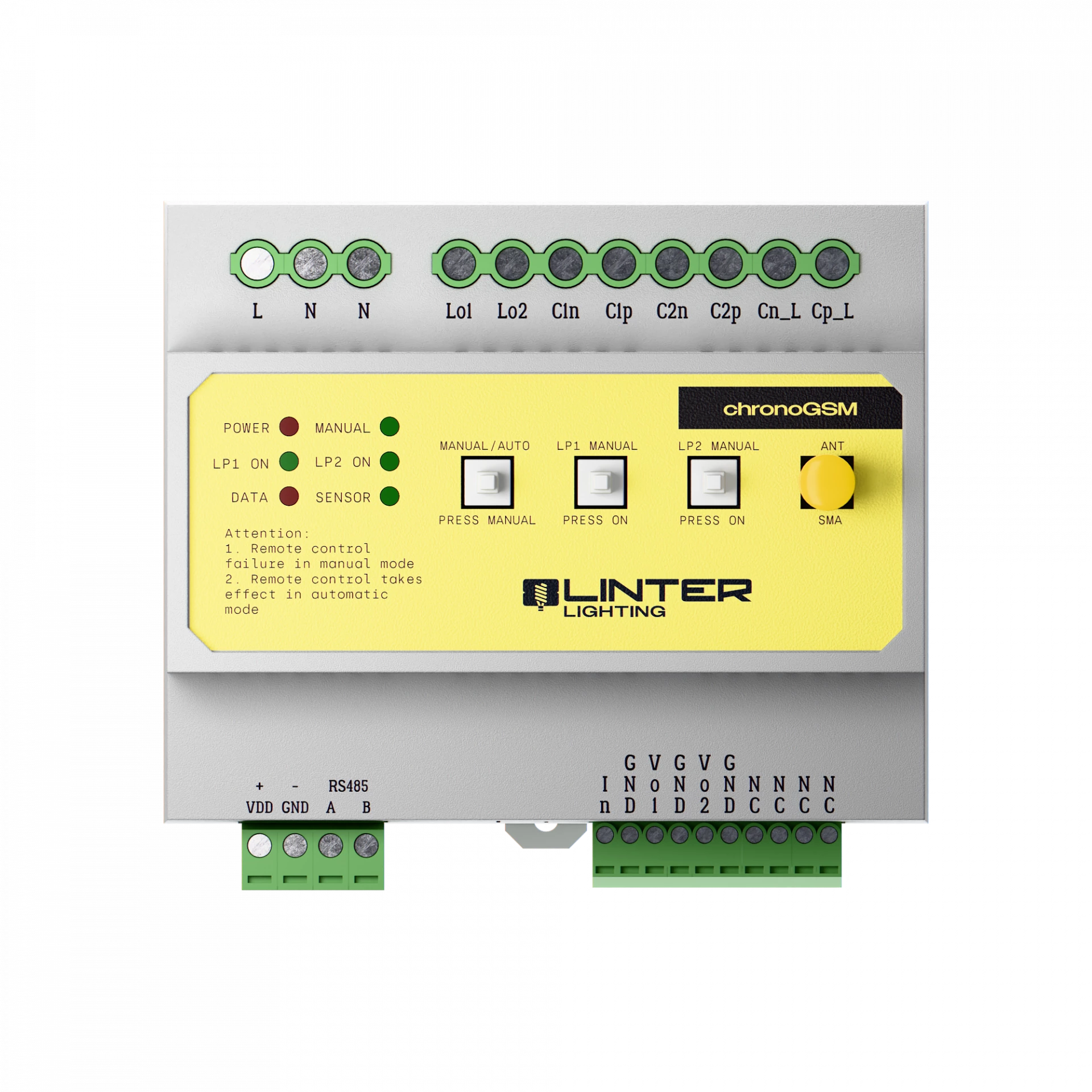

ChronoGSM 1

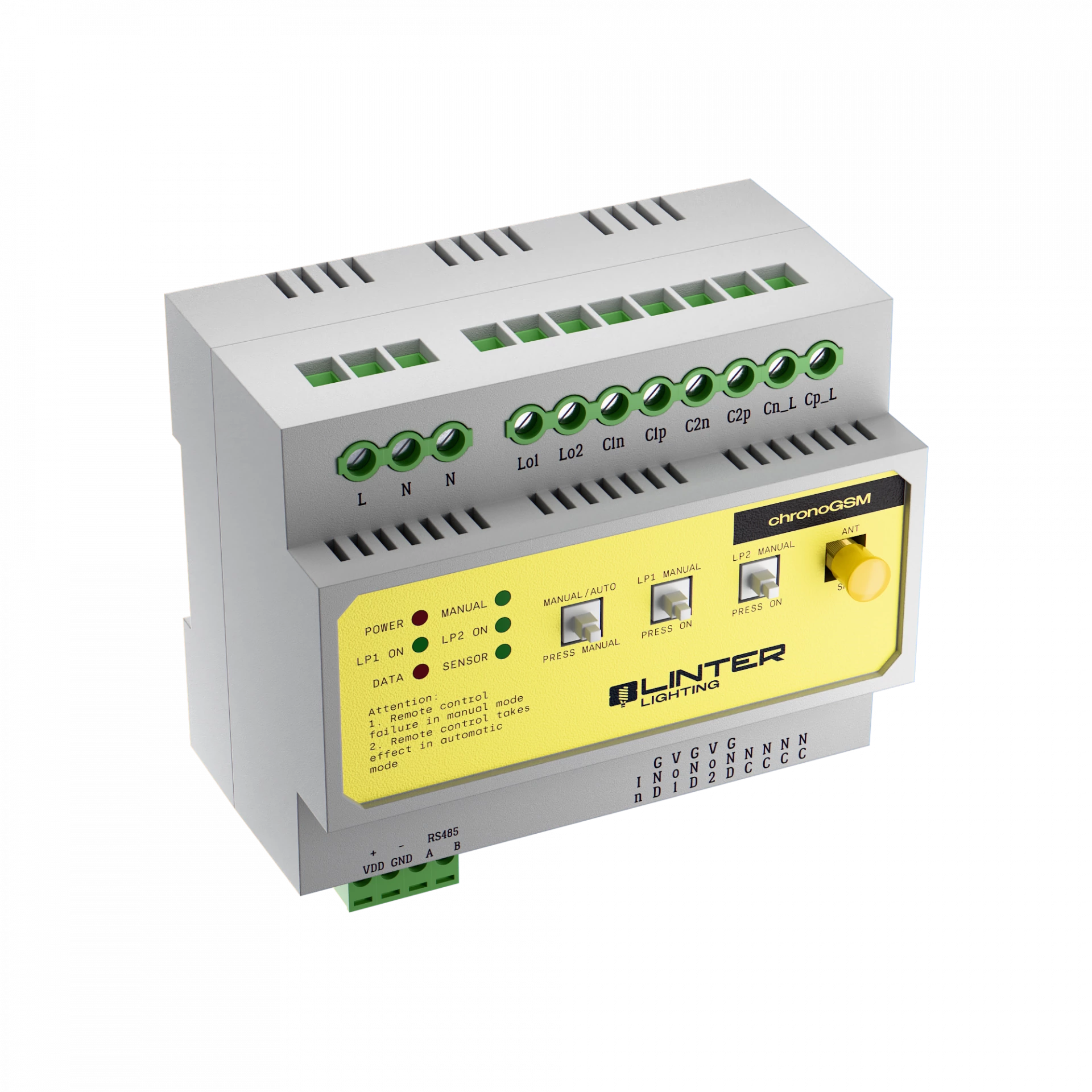

ChronoGSM 2

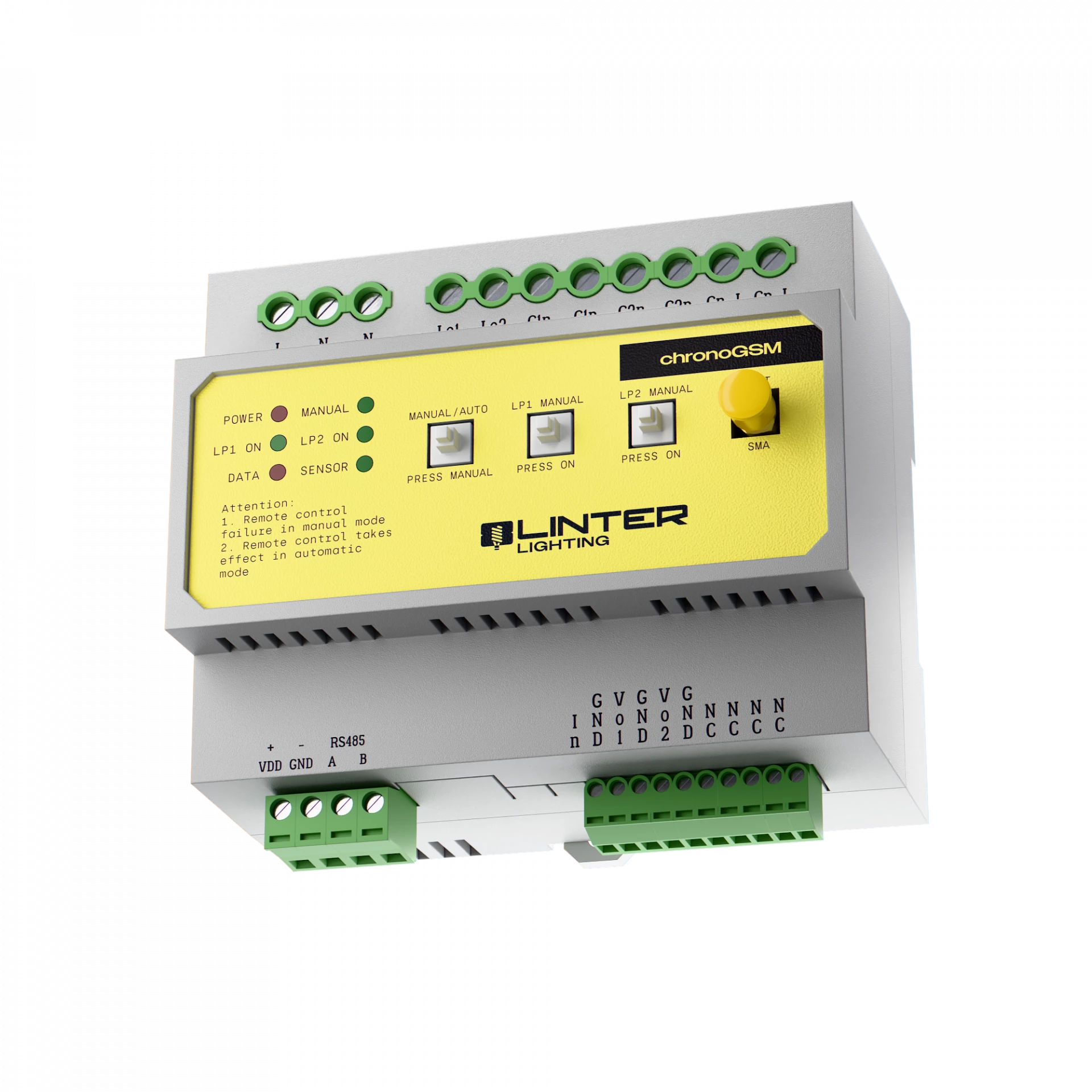

ChronoGSM 3

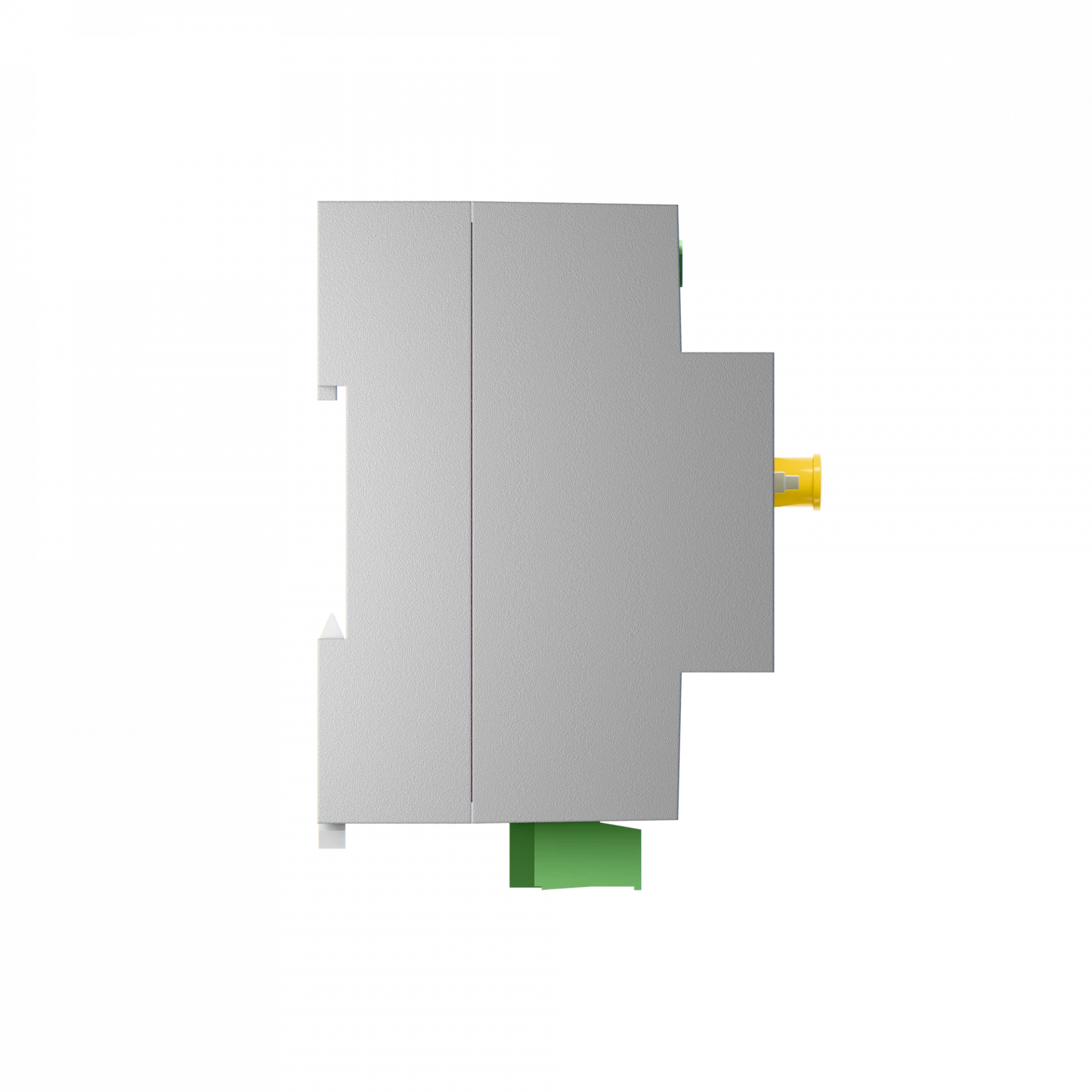

ChronoGSM 4

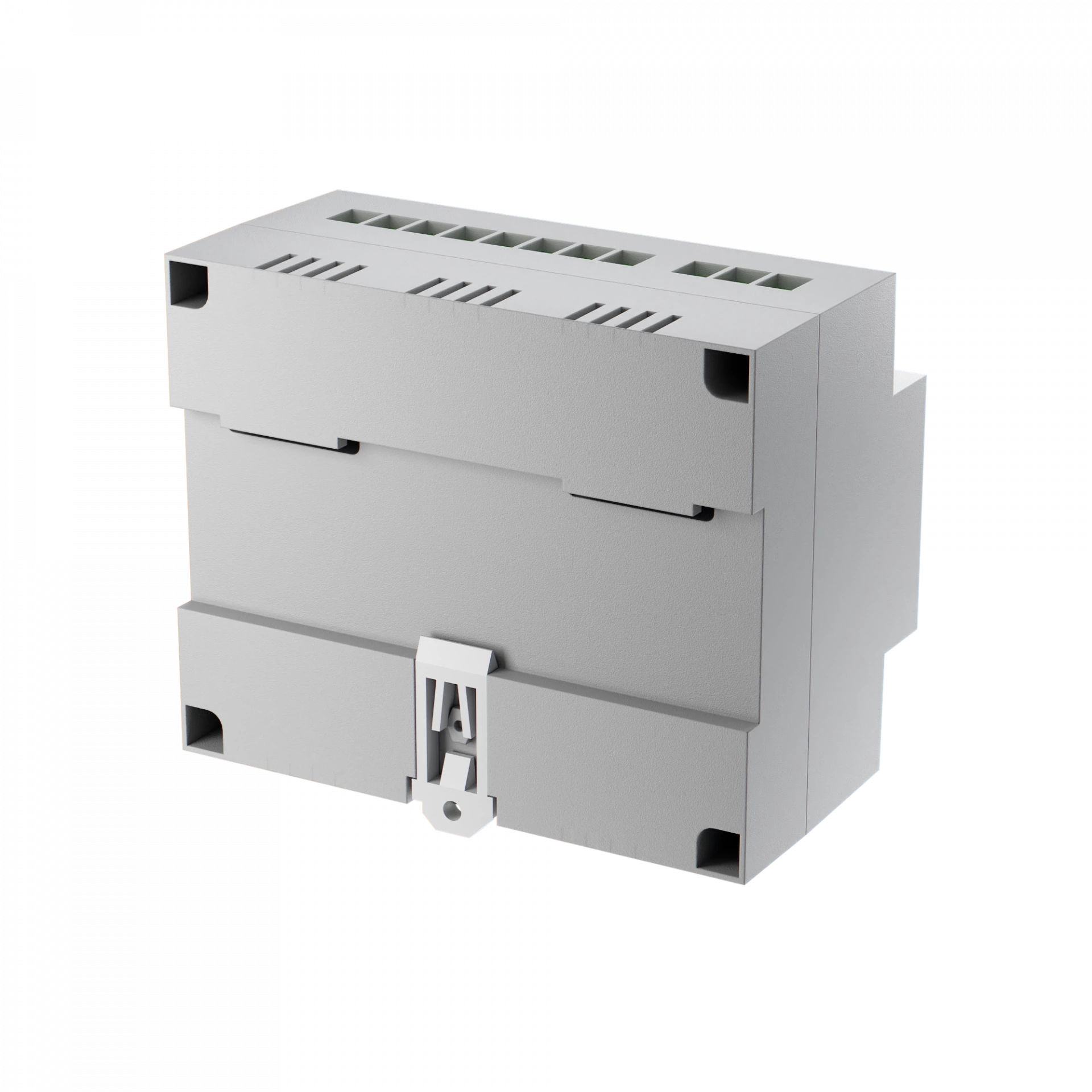

ChronoGSM 5
